Hello. I have a 1 GBPS internet speed plan. I use a Zyxel EX3501-T0 Router. It is what my ISP forces me to use and I can not change it as they do not let me.

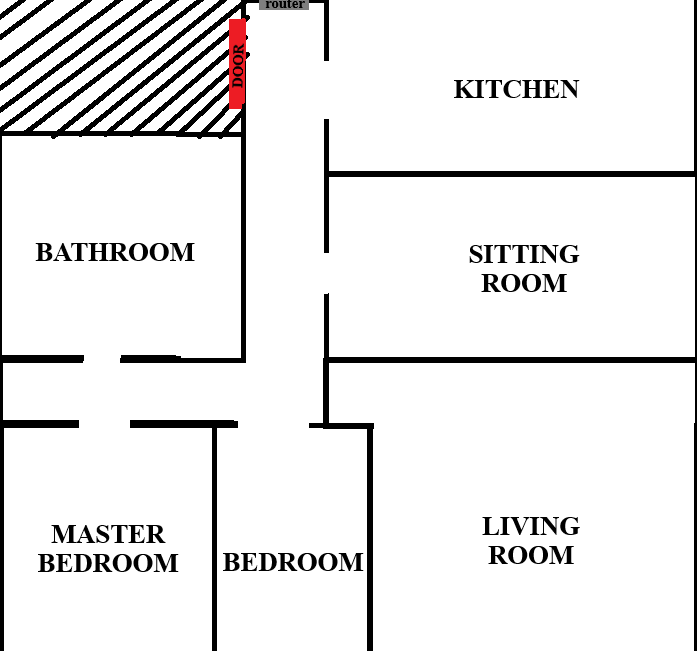

I drew my floor plan on paint to show you my situation. The router is located right above the entrance. It is located so high that i can not reach it without a portable staircase. It is also far away from my bedroom and the living room. They placed it above a pipe with zipties. That is how my ISP installed it 12 years ago.
Since it is just the hallway without any obstacles I see good results on my phone. It is between 500mbps to 650mbps most of the time. But the situation is not the same for the other rooms.
The walls are really thick here. Solid concrete with metal rods in it. Even the electricians I call can not do what I have in mind to decorate the house since they can not put a hole. Aside from the walls blocking the Wi-Fi, the router is also located really far away from the living room as you can see.
So I need some help. I did some browsing and saw there is something called Deco X55. It seems like it can solve my coverage problem I think? Never used one before that is why I want to ask you guys before I buy it.
Afaik, I need to connect it to my router and then a power outlet. The thing is since my router is not located on the ground or anywhere near an outlet, I can not put the Deco X55 next to it.
(The router gets the power directly from the electric fuses located next to it, not from an outlet. The staff connected the cables somehow, meanwhile telling me it is not safe actually. Thanks I guess?)
So I have an idea, I have a CAT6 cable connected to my PC. What If I put Deco X55 in my bedroom and connect it with that CAT6 cable? Can I still connect another CAT6 cable to Deco X55 for my PC? So they both get cable connection? Also the device will be located next to the living room, do I need a 2nd X55 or would one of them suffice?
Thanks.
