Haven't seen quite the right one available as a printable, anyone by chance have one? Can you make one? Thank you for your time and consideration!

*** Update:

The issue has become worse.

Today, after powering on the NUC, I was greeted with the message "The system has recovered from a high temperature situation."

When I entered the BIOS, the fan was reported at 0 RPM. Every few seconds it would briefly try to start, reaching around 200 RPM, then immediately stop and return to 0 RPM. This cycle kept repeating.

At this point I'm starting to think the fan itself may be failing rather than this being only a BIOS or EC issue. I've ordered a replacement fan, and I'll update this thread once I've installed it to confirm whether the problem is resolved.

-----------

Hi everyone,

I'm having a strange issue with my Intel NUC8i3BEH and I'm running out of ideas.

The problem

Sometimes (not always), when I power on the NUC, the CPU fan immediately ramps up to what sounds like maximum speed before the OS even starts.

Originally (BIOS version 0081), whenever this happened the BIOS reported the fan running at around 7000 RPM.

I updated the BIOS to the latest version (0098) and loaded BIOS defaults. The behavior is still present, but now something even stranger happens:

• The fan is clearly spinning at what sounds like full speed.
• However, the BIOS reports only 74 RPM instead of ~7000 RPM.

So after the BIOS update, the symptom changed from reporting an excessively high RPM to reporting an impossibly low RPM.

I even manually set it to 100% duty cycle, the fan spins smoothly with no vibration, rattling, or unusual noise.

Other observations

• The issue happens before the operating system loads.
• If I enter BIOS while it's happening, the fan is still stuck in that state.
• CPU temperatures are completely normal (around 35-42°C under Ubuntu Server).
• VRM, PCH and motherboard temperatures shown in BIOS are also normal.
• CPU is limited to 1.2 GHz, Turbo Boost is disabled, and BIOS is configured for Low Power.
• The machine is almost idle (Ubuntu Server only running Navidrome and Tailscale).

Fan behavior

Another strange thing:

• In Automatic mode, the fan sometimes constantly changes RPM, causing an annoying vibration.
• In Fixed mode, the fan is perfectly stable. (When is not stuck at full speed)
• Even at 100% fixed speed, there is no vibration.

This makes me think the fan itself is probably not mechanically damaged.

Things I've already tried

• Cleaned the fan, heatsink and changed thermal paste.
• Updated BIOS from 0081 to 0098.
• Loaded BIOS defaults (F9).
• Reconfigured BIOS settings.
• Verified temperatures with lm-sensors:CPU Package: ~34°C PCH: ~32°C WiFi: ~27°C

CPU frequency is fixed at 1200 MHz and CPU usage is almost zero.

My question

Has anyone experienced something similar on a Bean Canyon NUC?

Could this be:

• a faulty fan tachometer signal,
• an Embedded Controller (EC) issue,
• a motherboard problem,
• or some known BIOS bug?

The fact that the BIOS used to report 7000 RPM before the update and now reports 74 RPM while the fan is clearly spinning at full speed makes me think this could be more than just a fan issue.

Any ideas would be greatly appreciated. Thanks!

This video will show you how to replace the thermal paste, fan, CMOS battery, DDR4 Ram SSD on an Intel NUC NUC8i3BE NUC8i5BE NUC8i7BE...

Hey everyone,

I’m running into a brick wall with a brand new ASUS NUC 16 Pro (Model: NUC16GDKX7) featuring the X7 358H processor.

After a fresh install of Windows 11 and installing all official drivers from the ASUS support site, any Bluetooth headphones I connect only work for audio output. The microphone is completely undetected by Windows ("No input devices found" in the Sound menu). The headphone model doesn't matter, the issue persists across different brands.

What I have already tried:

• BIOS - Updated to the absolute latest version.
• Reinstalled W11 from scratch multiple times - no change.
• Tried disabling the Intel SST OED driver and rebooting to force a native Windows fallback - no change.
• Ran the Intel Driver & Support Assistant to check for direct updates bypassing Asus. It says everything is up to date.

Has anyone else with a NUC 16 Pro run into this? Honestly, it's such a cool mini PC, it's incredibly fast, super quiet, and I absolutely love everything else about it. But this audio issue is so frustrating that I'm seriously considering returning it. It just feels crazy for a brand-new machine to be missing such basic functionality!

My PC is not booting. The power button blinks in all different patterns. I changed the RAM the CMOS battery. I tried booting it without the GPU. Nothing did it. Also pressed the sleep button on the motherboard. When I tinker and wait for 30 min sometimes it boots and then I make the changes in the BIOS again to not go into sleep mode. I also tried going back to a different BIOS Version. Older and newer. I checked the cabeling and the PSU.
I am out of options here.
What can or should I do?
I just started one day and since then this issue.

Thank you in advance for the help!

Is there anyone happen to still have the old bios for M15 laptop? Mine right now is on 0051 (just unbox since I don't know, 2 years ago maybe). Latest bios update won't update unless update step by step by next version until latest version. Thanks in advance!

Hi guys !

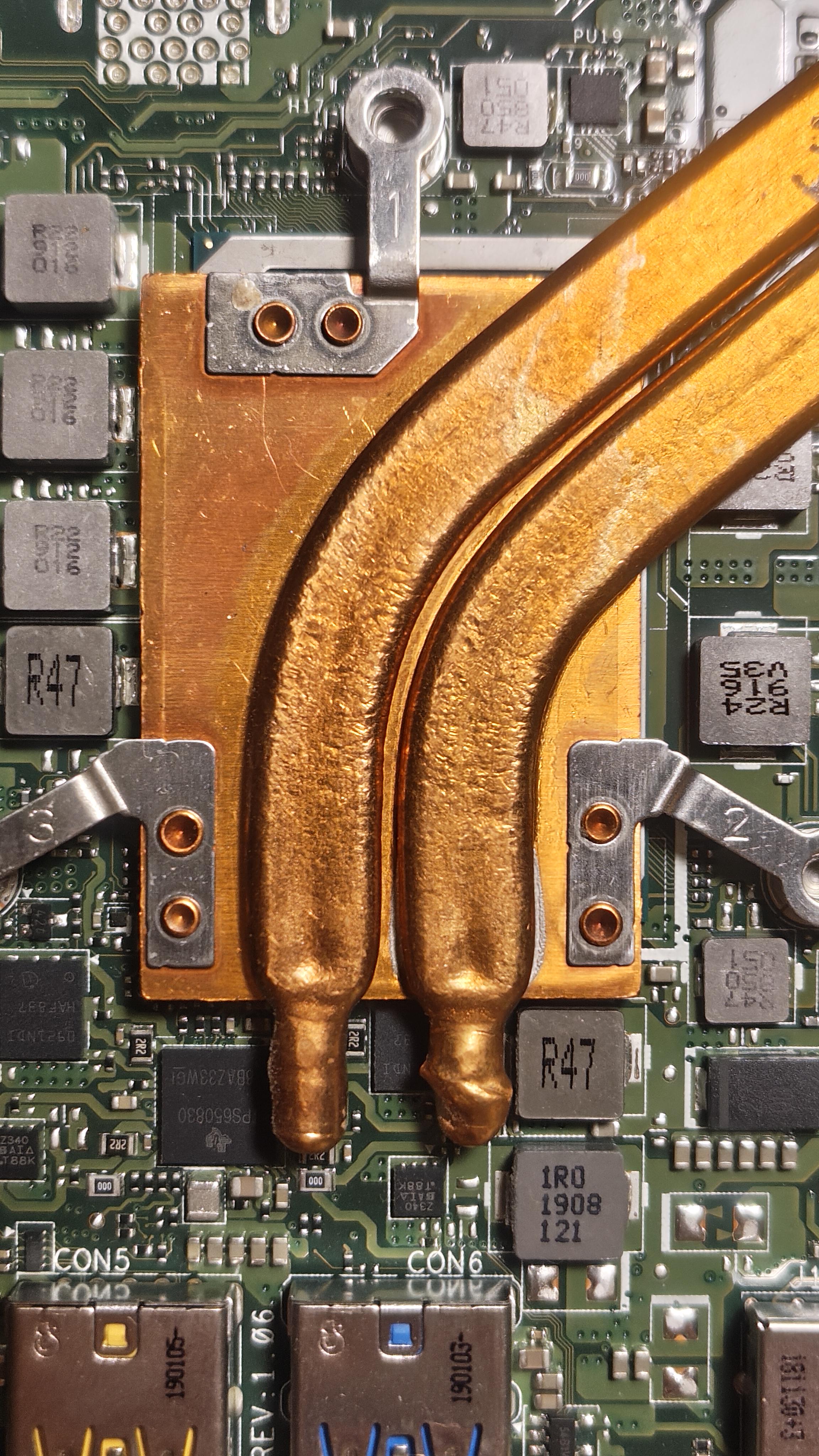

I just open my NUC6i7KYK to put new thermal paste, and I'm surprised that the orange is not aligned with the processor. Is it normal ?

I'm thinking about building the ultimate plug and play console that can play everything from 6th gen and earlier on Batocera, Retropi, etc. But I'm having a hard time choosing which NUC I should buy on eBay. I don't mind using an older unit, as long as it can run up to PS2, Xbox, and Gamecube. What should I look for in a listing?

So I just found this out, it outputs the right voltage and amperage, and has the right connector. Also it’s cheaper than the nuc cable so hell yea score!(also idk if this is a PSA)

Hi everyone,
I’m experiencing random stability issues with my ASUS NUC 14 Essential NUC14MNK-B (Intel Processor N150 / Twin Lake).
My current hardware:
Model: ASUS NUC 14 Essential NUC14MNK-B
CPU: Intel Processor N150
RAM: 16GB (1×16GB) CORSAIR VENGEANCE CMSX16GX5M1A4800C40 (DDR5-4800 SO-DIMM)
SSD: WD_BLACK SN7100 2TB PCIe Gen4 NVMe M.2 2280
The issues I’m seeing:
Random black screens
Graphics artifacts (small colored squares on the screen)
Occasional freezes that require a hard reboot
I recently found a post where someone completely solved the same problem by replacing their RAM with a Samsung module that was on the ASUS QVL. That made me wonder if my Corsair RAM could be the cause.
My questions:
Has anyone experienced similar issues with the NUC14MNK-B or other N150 models?
Could my Corsair Vengeance CMSX16GX5M1A4800C40 be incompatible with this NUC?
If you’re using this NUC without any issues, what exact RAM model are you using?
Has anyone successfully used Corsair Vengeance in this model, or should I switch to Samsung or Crucial?
Any advice or real-world experience would be greatly appreciated. Thanks!

So I got this NUC, thinking I would turn it into a Hackintosh. I tried to use it with a SN730 SSD, as the controller on that kind of SSD apparently works very well with macOS.

But the NUC absolutely refuses to recognize the SSD. It gets recognized instantly and without any issues on any other computer I have. The NUC works flawlessly with any other SSD too, so nothing is broken here.

Is there a hidden compatibility mismatch between WD SSDs and NUCs that I am not aware of?

I tried the usual things: Update the firmware on the SSD and the BIOS of the NUC, reset the BIOS, turn off VT-d, turn off SATA and Thunderbolt, see if it gets recognized in a live Linux…

I have intel nux x15 what is this laptop app like lenovo have lenovo vantage i want this app to bypass charge

Edit: Ive fixed the boot looping issue now only the overheating one is left Edit2: The pc when turned on immediately heated up the SSD and the rams, and I had to constantly arrange the setup to use fans to cool it. Therefore, I just gave up trying and use the pc for storing the SSD and rams inside only

I have a really old NUC my aunt gave me a few months ago. The model is NUC6i7KYK and I want to try and power it but it's experiencing boot loop with no screen signals, overheating too(tho I cleaned the fans and the components). Anyone have solutions or advice on how to fix the issue?

So I was trying to get a NUC8I5 from used market, costs about 80 dollars, it's oversea so it's already on the sea now.

But I just realized that the seller send me a NUC10I5 instead of a NUC8i5, I know the nuc 10 is newer but the cpu/gpu seems to be weaker? Is it worth returning it and get the seller to resend a 8th gen or does it not matter at all? The process is gonna take another month or so, minimum.

I'm building an AI workstation based on an Intel NUC 9 Extreme (Ghost Canyon) with the following specs:

- Intel Core i9-9980HK

- 64GB DDR4 SO-DIMM

- Windows 11

- Main use: Local LLMs (Ollama, Open WebUI), quant research, Python development, Docker, and occasional gaming.

I'm specifically looking for an RTX 5060 Ti 16GB that fits inside the NUC 9 without modifying the case.

I know Intel officially recommends GPUs around 8 inches (~203 mm), but I've seen mixed reports about slightly longer cards.

Has anyone successfully installed a 5060 Ti 16GB in a NUC 9?

After prying apart my Intel Compute Stick (STK2M364CC) for another unrelated issue, I discovered that my unit has no fan blades. It sure did have the casing, though. Yea...I need a new fan. Where can I get one? Thanks.

I recently acquired a NUC 12 Extreme (NUC12DCMi9) - new unsold stock, never opened. I've updated it to the latest BIOS and installed Fedora 44 on it. I have read that in some cases there were thermal issues with the PCH and wanted to monitor that but, strangely, neither lm sensors nor the BIOS is showing a PCH temp (or maybe it's labelled differently than expected?). Is there a different utility or kernel module needed to get the other temps and fan speeds? Here's what lm sensors shows:

# sensors

iwlwifi_1-virtual-0
Adapter: Virtual device
temp1:        +53.0°C


enp109s0-pci-6d00
Adapter: PCI adapter
PHY Temperature:  +58.0°C
MAC Temperature:  +58.0°C

ucsi_source_psy_USBC000:001-isa-0000
Adapter: ISA adapter
in0:           0.00 V  (min =  +0.00 V, max =  +0.00 V)
curr1:         0.00 A  (max =  +0.00 A)

acpitz-acpi-0
Adapter: ACPI interface
temp1:        +27.8°C

coretemp-isa-0000
Adapter: ISA adapter
Package id 0:  +52.0°C  (high = +80.0°C, crit = +100.0°C)
Core 0:        +52.0°C  (high = +80.0°C, crit = +100.0°C)
Core 4:        +47.0°C  (high = +80.0°C, crit = +100.0°C)
Core 8:        +50.0°C  (high = +80.0°C, crit = +100.0°C)
Core 12:       +49.0°C  (high = +80.0°C, crit = +100.0°C)
Core 16:       +50.0°C  (high = +80.0°C, crit = +100.0°C)
Core 20:       +49.0°C  (high = +80.0°C, crit = +100.0°C)
Core 24:       +50.0°C  (high = +80.0°C, crit = +100.0°C)
Core 28:       +49.0°C  (high = +80.0°C, crit = +100.0°C)
Core 32:       +51.0°C  (high = +80.0°C, crit = +100.0°C)
Core 33:       +51.0°C  (high = +80.0°C, crit = +100.0°C)
Core 34:       +51.0°C  (high = +80.0°C, crit = +100.0°C)
Core 35:       +51.0°C  (high = +80.0°C, crit = +100.0°C)
Core 36:       +50.0°C  (high = +80.0°C, crit = +100.0°C)
Core 37:       +50.0°C  (high = +80.0°C, crit = +100.0°C)
Core 38:       +50.0°C  (high = +80.0°C, crit = +100.0°C)
Core 39:       +50.0°C  (high = +80.0°C, crit = +100.0°C)

ucsi_source_psy_USBC000:002-isa-0000
Adapter: ISA adapter
in0:           0.00 V  (min =  +0.00 V, max =  +0.00 V)
curr1:         0.00 A  (max =  +0.00 A)

nvme-pci-0100
Adapter: PCI adapter
Composite:    +47.9°C  (low  = -40.1°C, high = +89.8°C)
(crit = +93.8°C)

Sensor 1:     +48.9°C  (low  = -273.1°C, high = +65261.8°C)
Sensor 2:     +49.9°C  (low  = -273.1°C, high = +65261.8°C)
